Bubble & Foam Foil Insulation
☑ Aluminum Foil Bubble Insulation
It consists of one or two layers bubble or foam that are sandwiched between two layers of 99.9% pure aluminum foil. This style can be used in a variety of applications for its thin lightweight properties. The middle bubble and foam layers creates maximum R value and vapor barrier, the reflective foil on both sides make it reflect 97% radiant heat away. So the product can work effectively in both hot and cold climates .

Product Details

4.Bubble & Foam Foil Insulation-14.Bubble & Foam Foil Insulation-24.Bubble & Foam Foil Insulation-3


Technology data

Typical Physical Properties

Thickness

Tensile Strength

Tear Strength

Length

Width

Sqms/Roll

10mm or 15mm

14.6IB/Inch

4.5IB/Inch

20m

1.2m

24m²


Max R Value

Heat Flow Down (Roof)

Heat Flow Horizonta (Wall)

Heat Flow Up (Floor)

14.8m²*k/w

7.8m²*k/w

4.9m²*k/w


Thermal Performance

Water Vapor Performance

Fire Performance

Application Conditions

Reflectivity

Emissivity

Water proof

Fire proof

Temperature

97%

0.03

100%

CLASS A

-50℃ ~ 80℃


Detail

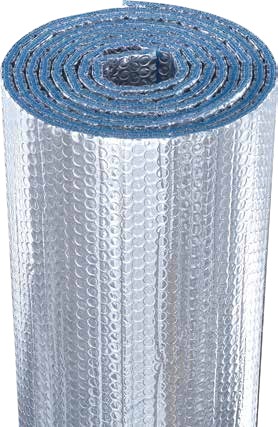

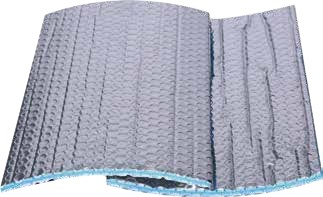

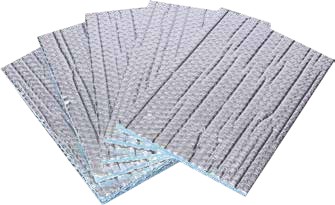

4.Bubble & Foam Foil Insulation-5 4.Bubble & Foam Foil Insulation-6    4.Bubble & Foam Foil Insulation-4

 AL+Bubble+EPE+Bubble +AL


roll

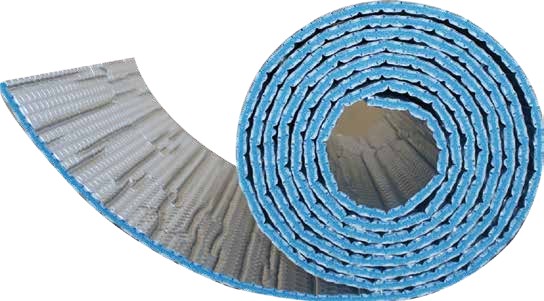

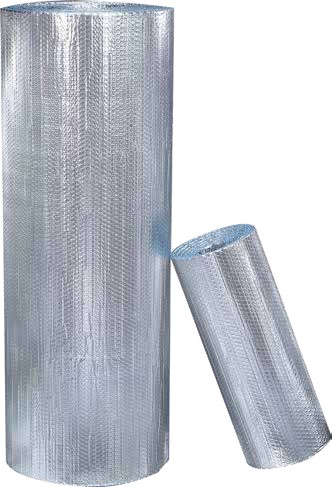

   4.Bubble & Foam Foil Insulation-8   4.Bubble & Foam Foil Insulation-7

Production

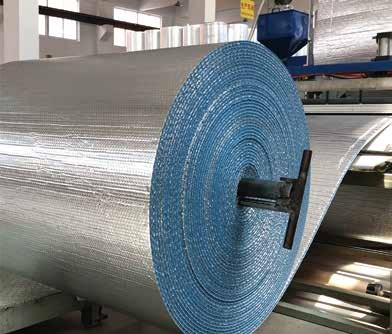

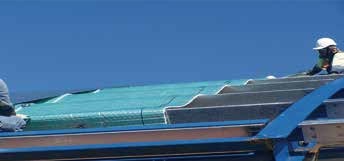

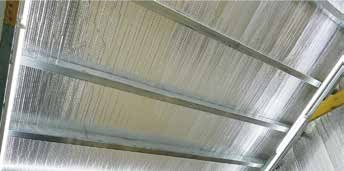

4.Bubble & Foam Foil Insulation-9  4.Bubble & Foam Foil Insulation-10  4.Bubble & Foam Foil Insulation-11
