Double Bubble Double Foil Insulation
☑ Aluminum Foil Bubble Insulation
Double bubble insulation reflects almost 97% of the radiant heat rays to keep the inner atmosphere cool. Double bubble thermal insulation material is actually a two layered polyethylene air bubble film laminated between 99% of pure aluminum material. This structure makes the air bubble film much stronger and durable that can even withstand punctures and tears over a long time.

Product Details

2.Double Bubble Double Foil Insulation-1  2.Double Bubble Double Foil Insulation-3  2.Double Bubble Double Foil Insulation-2


Technology data

Typical Physical Properties

Thicknes

Tensile Strength

Tear Strength

Length

Width

Sqms/Roll

6mm or 8mm

12IB/Inch

4IB/Inch

30m

1.2m

36m²


Max R Value

Heat Flow Down (Roof)

Heat Flow Horizonta (Wall)

Heat Flow Up (Floor)

12.6m²*k/w

6.2m²*k/w

4.1m²*k/w


Thermal Performance

Water Vapor Performance

Fire Performance

Application Conditions

Reflectivity

Emissivity

Water proof

Fire proof

Temperature

97%

0.03

100%

CLASS A

-50℃ ~ 80

Detail

2.Double Bubble Double Foil Insulation-9  2.Double Bubble Double Foil Insulation-8  2.Double Bubble Double Foil Insulation-7

2.Double Bubble Double Foil Insulation-6    2.Double Bubble Double Foil Insulation-5    2.Double Bubble Double Foil Insulation-4

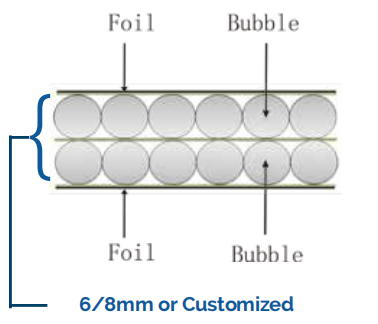

 AL+Bubble+Bubble+AL

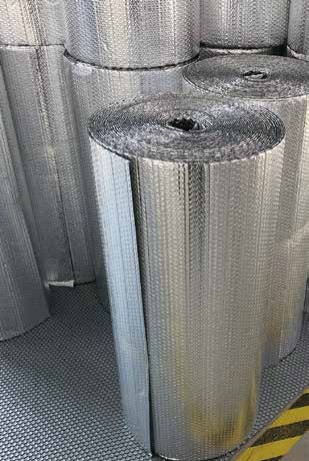

Rolls

2.Double Bubble Double Foil Insulation-10   2.Double Bubble Double Foil Insulation-12   2.Double Bubble Double Foil Insulation-11

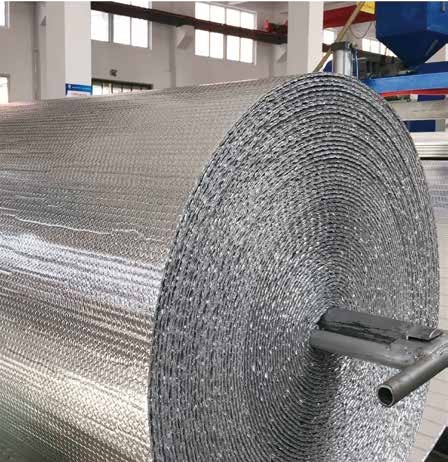

Production

2.Double Bubble Double Foil Insulation-14   2.Double Bubble Double Foil Insulation-13
