Double Foil Laminated With Single Bubble & Foam
☑ Aluminum Foil Bubble Insulation
Aluminum Foil Bubble EPE Foam insulation is manufactured with a closed cell foam structure with one layer of bubble between two sides highly reflective aluminum foil surfaces, it is the fiber-free,non allergenic alternative to conventional bulk insulation. In Summer, it will stop 97% of the summer heat gain due to radiation across your roof space. In Winter, it is effective in reducing winter heat loss. Instead of losing all the heat it will be reflected back into your home, keeping your home warmer by between 6-8 degrees.

Product Details

5.Double Foil Laminated With Single Bubble & Foam-1   5.Double Foil Laminated With Single Bubble & Foam-2   5.Double Foil Laminated With Single Bubble & Foam-3


Technology data

Typical Physical Properties

Thickness

Tensile Strength

Tear Strength

Length

Width

Sqms/Roll

6mm

12.8IB/Inch

4.2IB/Inch

30m

1.2m

36m²


Max R Value

Heat Flow Down (Roof)

Heat Flow Horizonta (Wall)

Heat Flow Up (Floor)

12.8m²*k/w

6.5m²*k/w

4.3m²*k/w


Thermal Performance

Water Vapor Performance

Fire Performance

Application Conditions

Reflectivity

Emissivity

Water proof

Fire proof

Temperature

97%

0.03

100%

CLASS A

-50℃ ~ 80℃

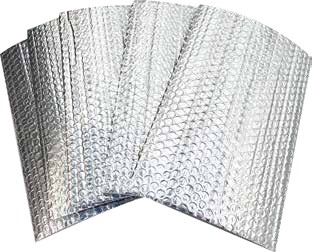

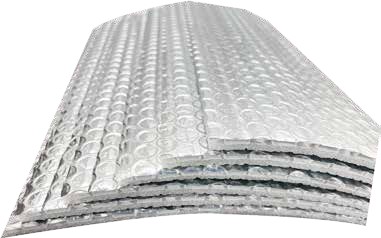

Detail

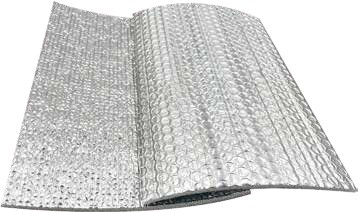

5.Double Foil Laminated With Single Bubble & Foam-4  5.Double Foil Laminated With Single Bubble & Foam-5

5.Double Foil Laminated With Single Bubble & Foam-65.Double Foil Laminated With Single Bubble & Foam-7

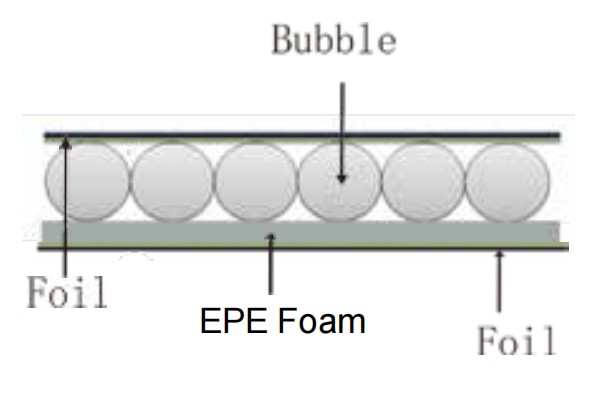

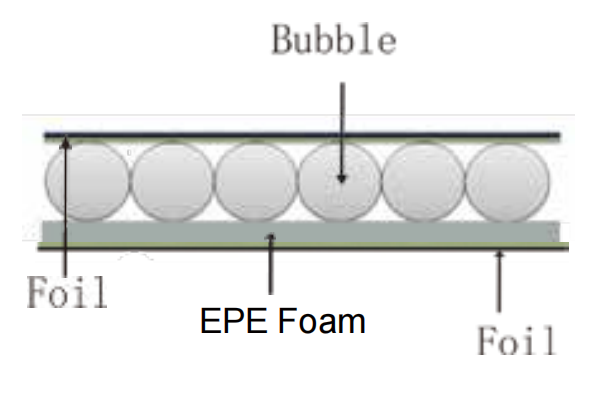

 AL+BUBBLE+FOAM+AL

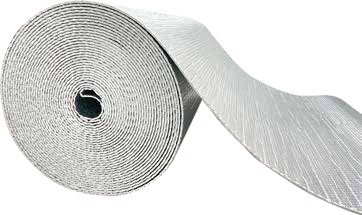

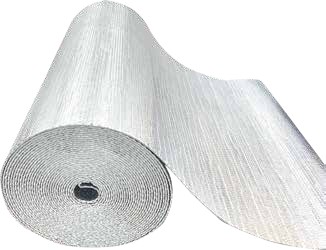

Rolls

5.Double Foil Laminated With Single Bubble & Foam-9   5.Double Foil Laminated With Single Bubble & Foam-8

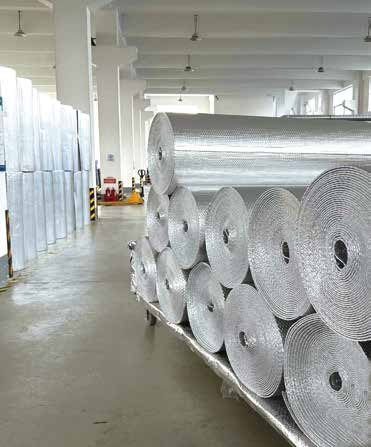

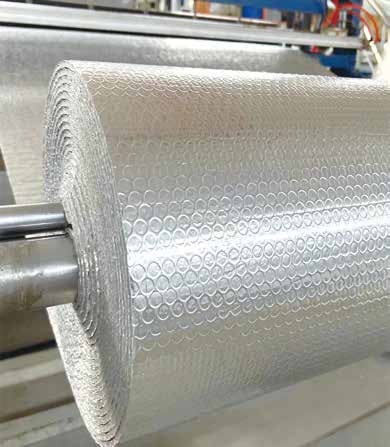

Production

5.Double Foil Laminated With Single Bubble & Foam-10   5.Double Foil Laminated With Single Bubble & Foam-11
