Single Bubble Double Foil Insulation
☑ Aluminum Foil Bubble Insulation
This single bubble aluminum foils insulation product consists of 1 layer of 3mm or 4mm polyethylene bubble that is sandwiched between two aluminum foils, low emissivity surfaces. The polyethylene encapsulated air bubbles serve as an effective thermal break as well as a vapor barrier while the two outer surfaces reflect up to 97% of all radiant energy.

Product Details

Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation

Technology data


Typical Physical Properties

Thickness

Tensile Strength

Tear Strength

Length

Width

Sqms/Roll

3mm(4mm is also ok)

11IB/Inch

3.5IB/Inch

40m
1.2m48m2


Max R Value

Heat Flow Down (Roof)

Heat Flow Horizonta (Wall)

Heat Flow Up (Floor)

10.5m²*k/w

5.3m²*k/w

3.5m²*k/w


Thermal Performance

Water Vapor Performance

Fire Performance

Application Conditions

Reflectivity

Emissivity

Water proof

Fire proof

Temperature

97%

0.03

100%

CLASS A

-50℃ ~ 80℃

Detail

Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation

Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation

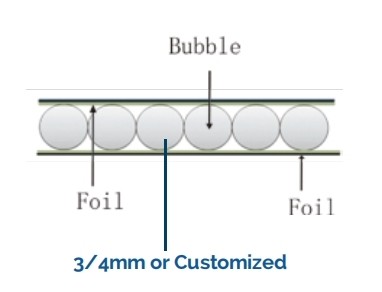

 AL+Bubble+AL

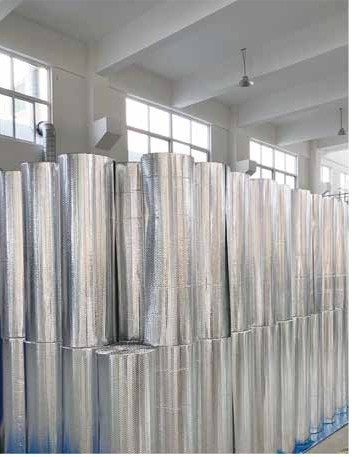

Rolls

Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation


Production


Single Bubble Double Foil Insulation  Single Bubble Double Foil Insulation
