Single Side Aluminum Foil With Woven Fabric
☑ Aluminum Foil Bubble Insulation
Aluminum Foil Woven Cloth Insulation uses reflective technology to increase the energy efficiency and comfort level of your home. It is made of a thin layer of woven polyethylene which is sandwiched between one layer of a highly reflective aluminum foil . With the polyethylene woven fabric core, the product cannot be ripped or torn. It blocks 97% of radiant heat transfer, helping keep your home cooler in the summer and warmer in the winter. It also acts as a vapor barrier, keeping moisture from passing through it. They are widely used on roof,wall & floor.

Product Details

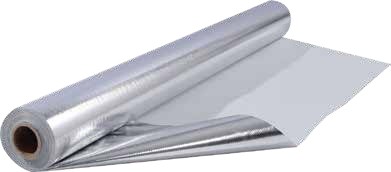

10.Single Side Aluminum Foil With Woven Fabric-1   10.Single Side Aluminum Foil With Woven Fabric-2


Technology data


Typical Physical Properties

Type

Tear Strength

Density

Max Width

Thickness

Solid or Perforated

11.2IBF(MD)

11.85IBF(TD)

75-150g/m²

2m

0.13mm or 5mil


Thermal Performance

Water Vapor Performance

Mold and Mildew

Corrosivity

Reflectivity

Emissivity

Water proof



97%

0.03

0.013G/M² kpa

NO Growth

pass


Detail

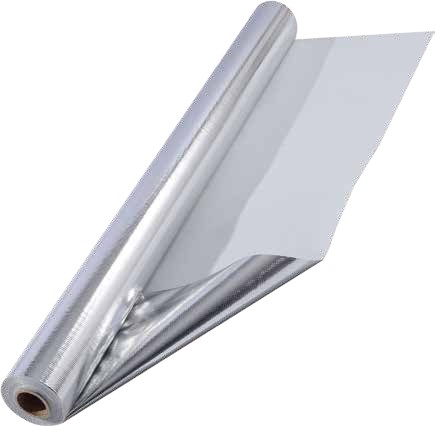

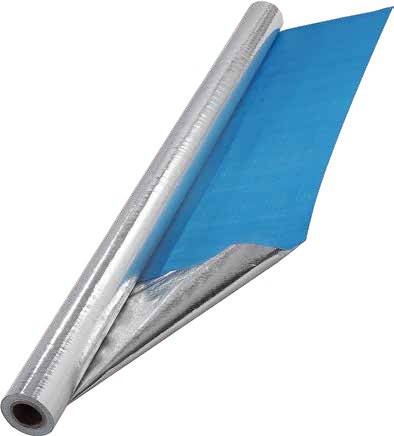

10.Single Side Aluminum Foil With Woven Fabric-4   10.Single Side Aluminum Foil With Woven Fabric-3

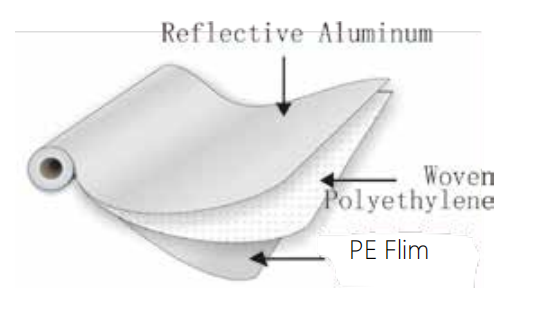

 AL + Woven fabric + PE

Rolls

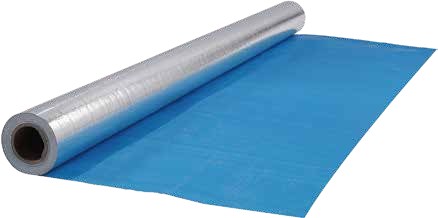

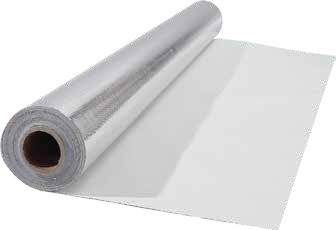

10.Single Side Aluminum Foil With Woven Fabric-5   10.Single Side Aluminum Foil With Woven Fabric-6

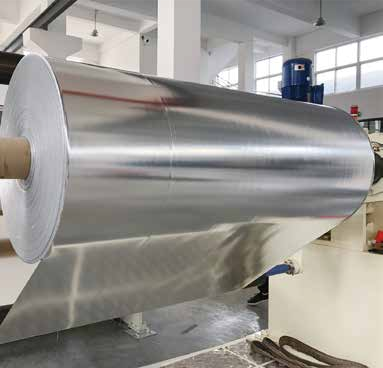

Production

9.Double Side Aluminum foil with Woven Fabric-7   9.Double Side Aluminum foil with Woven Fabric-8
