Single bubble Single Foil White Polyethyene Film
☑ Aluminum Foil Bubble Insulation
This single bubble aluminum foils insulation product consists of 1 layer of 3mm or 4mm polyethylene bubble that is sandwiched between one aluminum foil, low emissivity surface and one layer of puncture resistant, chemically stable, white polyethylene. The purpose for installing Reflective Bubble White Poly in a concrete slab application is two-fold, first, it acts as a vapor retarder and second, it provides a thermal break.

Product Details

3.Single bubble Single Foil White Polyethyene Film-13.Single bubble Single Foil White Polyethyene Film-23.Single bubble Single Foil White Polyethyene Film-3



Technology data


Typical Physical Properties

Thickness

Tensile Strength

Tear Strength

Length

Width

Sqms/Rol

3mm or 4mm

10.5IB/Inch

3.0IB/Inch

40m

1.2m

48m²


Max R Value

Heat Flow Down (Roof)

Heat Flow Horizonta (Wall)

Heat Flow Up (Floor)

10.0m²*k/w

4.8m²*k/w

2.3m²*k/w


Thermal Performance

Water Vapor Performance

Fire Performance

Application Conditions

Reflectivity

Emissivity

Water proof

Fire proof

Temperature

97%

0.03

100%

CLASS A

-50℃ ~ 80℃


Detail

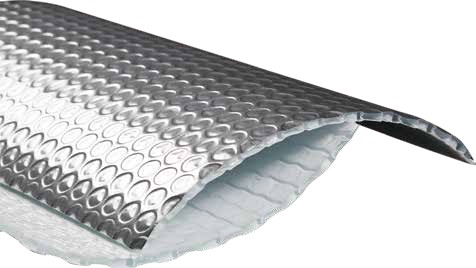

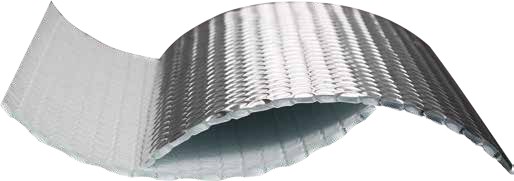

3.Single bubble Single Foil White Polyethyene Film-5  3.Single bubble Single Foil White Polyethyene Film-4

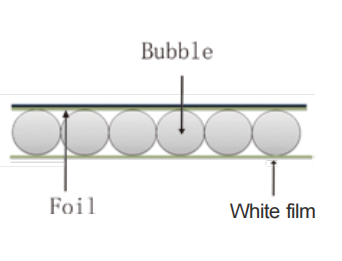

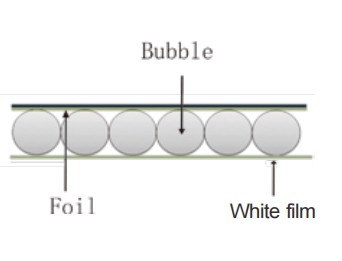

 Al+Bubble+White Film

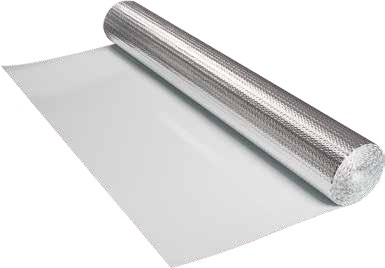

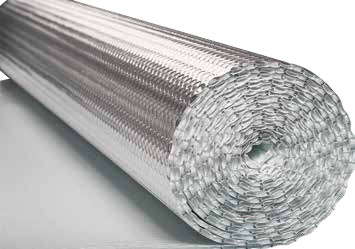

Rolls

3.Single bubble Single Foil White Polyethyene Film-7   3.Single bubble Single Foil White Polyethyene Film-6

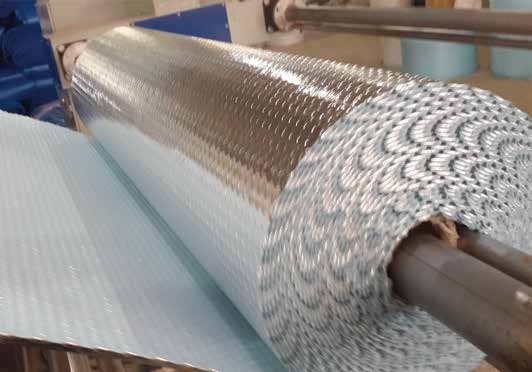

Production

3.Single bubble Single Foil White Polyethyene Film-8   3.Single bubble Single Foil White Polyethyene Film-9   3.Single bubble Single Foil White Polyethyene Film-10
