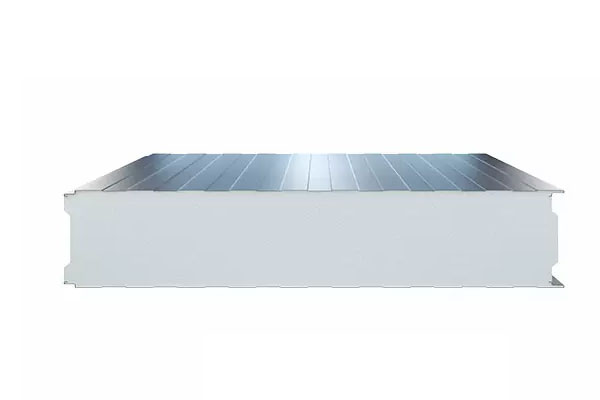

Sandwich Panel For Cold Room /Storage /Warehouse
☑ Cold Storage Panels
Cold Storage lnsulation Materials For Refrigeration System Consisting Of Panellings Ceilings And Insulation Materials Including Accessories (wall Panels And Accessories),The Cold Storage panels are designed for use on external walls, suspended ceilings and internal walls of cold stores and freezers. Most often they are installed vertically. Panels with the PUR/PIR core are characterised by improved fire protection properties and slightly better thermal properties.

Product Details

Our advantages


  • Imported production line from Europe

  • Highest quality raw materials

  • Innovative solutions

  • Expert technical assistance

  • Reliable and professional service

  • After-sales support

  • Comfortable

  • Safe packing & delivery


Junda sandwich panel declares that the offered panels are manufactured in accordance with PN-EN 14509 standard and are subject to the Factory Manufacture Control arising from this standard. Burning behaviour tests have been carried out at the notified laboratory Fires in Slovakia.

Burning behaviour parameters of panels with PUR core are given in accordance with PN-EN 14509:2010 standard.

Burning behaviour parameters of panels with PI/PIR+ core are given in accordance with PN-EN 14509:2013 standard.

1-SGS+CEQ

2-FM

Balance of benefits

Sandwich panels with coated metal lining have been used in building industry for over 40 years. Some of the benefits of using our sandwich panels are:

Thermal insulation.

Thermal conductivity of panels with polyisocyanurate foam core is 0.022 W/mK.

Durability.

Protection against weather conditions, maintaining properties and appearance for many years. When coating is properly selected for local conditions, several years’ durability of panels may be reached without any problem.

Waterproofness.

Water, snow and damp will not get through. Perfectly finished joints ensure complete waterproofness for many years, if installation standards are followed.

Sound absorption.

Properly selected core material can give very good noise insulation parameters. They are particularly important if insulation of outside noise, reduction of industrial noise propagation to the outside of the building or noise reduction within the building is required.

Fire resistance.

Properties according to the needs. Proper type of core can ensure reaching fire resistance class up to A (mineral wool). This enables protection of escape routes and separation of fire compartments from each other.

Easy and quick installation, low construction costs.

10mm thick PUR/PIR foam panel has the same heat-transfer coefficient U as a 390 cm thick aerated concrete wall, or a 290 cm thick brick wall.

Resistance.

Roof panels can withstand the load of snow and wind depending on their thickness and climatic zone, with supports placed every 3 m. Wall panels in most cases can be used with supports span of up to 6 m. This results in real savings in terms of the supporting structure and also in the costs of the entire building.

Benefits for the natural environment.

Entire power input in the production of the material used for thermal insulation of the building pays for itself after two or three years from installation, on average. Materials used in production are recyclable. Steel can be easily reused. Waste core materials can also be recycled, while production of the panels itself is not harmful to the environment.

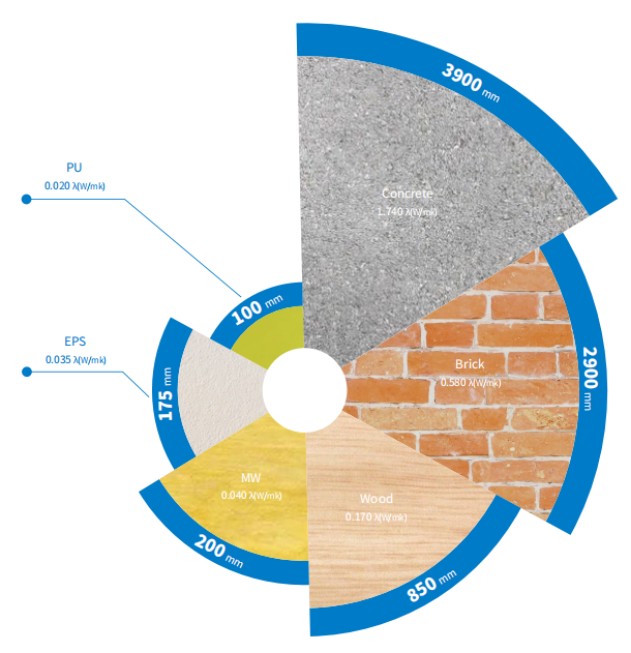

Comparison of the same insulation effect with different thicknesses.

3-Comparison of the same insulation effect with different thicknesses.

Capabilities

Lining

Steel sheet

Requirements

Description

Steel type

according to PN-EN 10346

S250 GD; S280 GD; S320 GD

Steel grades with higher strength parameters for manufacture of sandwich panels.

Steel type

according to PN-EN 10346

0.40;  0.50;  0.60

For internal and external lining of the sandwich panel.

Galvanic plating

according to PN-EN 10346

Z225 - 275

Double-sided zinc coat, electroplated, with weight of 225 - 275 g/m2 .

AZ150

Double-sided aluminium and zinc coat, electroplated, with weight of 150 g/m2 .

Paint Coats

Standard Poliester 25 μm

Standard paint coat with thickness of 25 μm, resistant to weather conditions. This coat is smooth and may be used for roofings and walls. Corrosion resistance class RC3.

HDS

Paint coat with thickness of 35 μm. It is smooth or granular and has good UV resistance. Recommended for roofings and walls, for sandwich panels or accessories. Corrosion resistance class RC4.

HDX

Paint coat with thickness of 55 μm. Strong coat with very good UV and corrosion resistance and very good colour stability. Recommended for buildings exposed to difficult weather and environmental conditions - on roofs, elevations or air conditioning devices. Corrosion resistance class RC5.

Prisma

High quality paint coat with thickness of 50 μm and aesthetic appearance. Perfect choice for buildings that are to draw attention and stand the test of time. Usually, the product can last for 30 years. It is particularly recommended in areas with high levels of industrial pollution and in seaside regions.. Corrosion resistance class RC5.

HPS 200

Paint coat with thickness of 200 μm.  Most often chosen by architects in Europe for walls and in particular roofs,  where highest durability and quality are required.

It is particularly recommended in areas with high levels of industrial pollution and in seaside regions. Also under Guarantee with the period of up to 30 years. Corrosion resistance class RC5.

Farm Coat

Special paint coat with thickness of 35 μm for agricultural applications, resistant to aggressive conditions inside farm buildings. Corrosion resistance class RC3.

Food Coat

Special paint coat with thickness of 50 μm for food industry applications, such as cold stores; approved for contact with food.

Food Safe

Special paint coat with thickness of 120 μm for food industry applications, such as cold stores, approved for contact with food. Resistant to most cleaning agents.

Stainless steel

PUR/PIR/PIR+ panels are also manufactured with stainless steel cladding.

Designation

according to

EN 10088

Designation

according to

AISI/ASTM

Chemical composition (%)

C

Si

Mn

P max

S

N

Cr

Mo

Ni

1,4301

304

≤0.07

≤1.00

≤2.00

0.045

≤0015

≤0.11

17.50-19.50

-

8.00-10.50

Profile types

Thanks to the variety of profile types of JUNDAPANEL sandwich panels lining and a wide selection of paint coats in various colors, our products can give a unique character to any building.

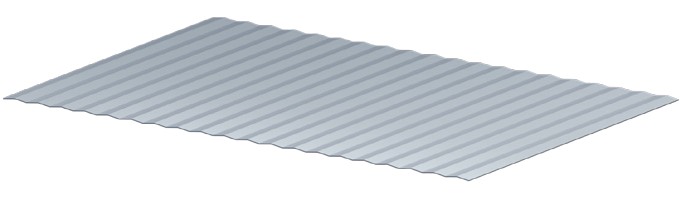

4-M-corrugated

5-L-linear

M-corrugatedL-linear

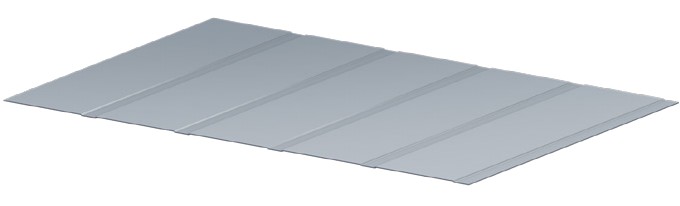

6-R-grooved

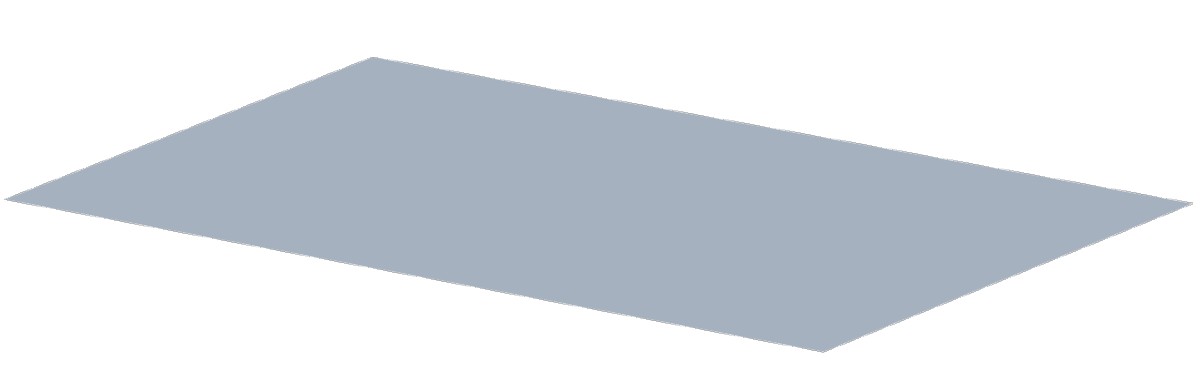

7-BP-SMOOTH

R-groovedBP-smooth

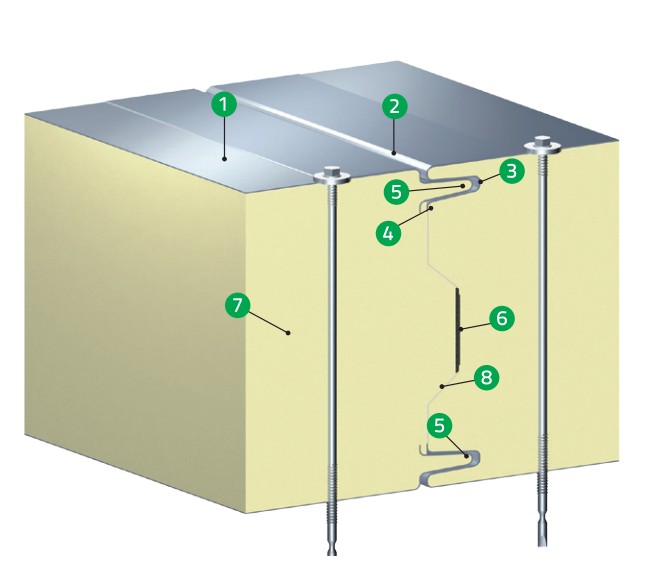

1-JundaCold

1.Profiled Lining with a unique surface design.

2.Sealant applied at the construction site( optional).

3.Large bend radii guarantee durability of lining protective coatings.

4.Profiled edges facilitate assembly and ensure proper thermal insulating power.

5.Double panel lock guarantees best fire resistance properties.

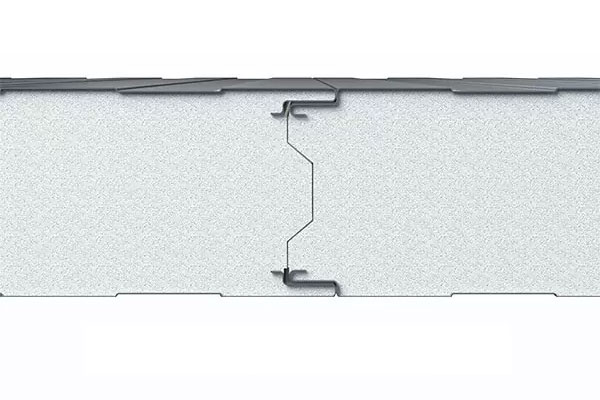

6.Labyrinth core joint eliminates thermal bridge.

7.Core made of stiff, freon-free, self-extinguishing PIR/PIR+ foam with very good thermal insulation properties.

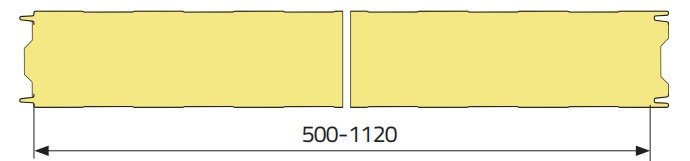

2-

3-



The sandwich panels are designed for use on external walls, suspended ceilings and internal walls of cold stores and freezers. Most often they are installed vertically. Panels with the PUR/PIR/PIR+ core are characterised by improved fire protection properties and slightly better thermal properties.

4-thermal insulating power


Thermal

insulating

power

g

weight

λ

U

[mm]

[kg/m2 ]

[W/(m•K)]

[W/(m2 •K)]

0.5/0.4mm

0.5/0.5mm

120

12.2

13.0

0.022

0.18

140

13.0

13.8

0.16

160

13.8

14.6

0.14

180

14.6

15.4

0.12

200

15.4

16.2

0.11

220

16.2

17.0

0.10

5-Burning behaviour

Burning behaviour

g

[mm]

PUR / PIR

PIR+

Reaction

to fire

Fire propagation

Fire

resistance

Reaction

to fire

Fire propagation

Fire

resistance

120

Bs-2,d0

NRO

EI15

Bs-1.d0

NRO

EI30

140

160

180

200

EI30/EI60

220

6-Leakproofness

Leakproofness

Waterproofness

Air permeability

A class

thrust

suction

n = 1.1983, C= 0.0022

n = 1.0141, C = 0.0036

7-Acoustic properties

Acoustic properties

Parameters according to PN-EN ISO 717-1:1999

Rw≥

RA1≥

RA2≥

27

24

22

8-Load capacity

Load capacity

g

[mm]

Maximum length [m] of a single-span beam as a panel with 0.4/0.5 mm bright coloured cladding, doublesided linear profile type for individual values of specific load [kN/m2], with limiting ULS.

-1 kN/m2

-0.6kN/m2

-0.4kN/m2

0.4kN/m2

0.6kN/m2

1kN/m2

120

4.7

6.0

7.4

8.3

5.9

5.2

140

3.9

5.1

6.2

7.8

6.3

4.9

160

4.2

5.4

6.6

8.3

6.7

5.2

180

4.5

5.7

7.0

8.8

7.1

5.5

200

4.7

6.1

7.4

9.2

7.5

5.6

220

4.9

6.4

7.8

9.7

7.9

5.6


Basic plate type

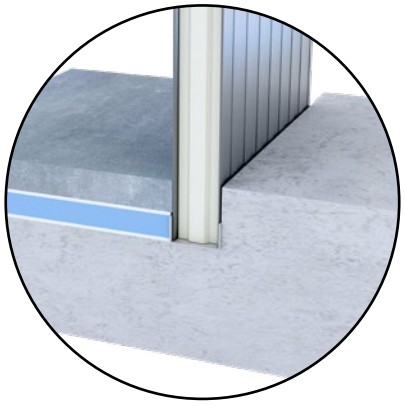

9-Vertical wall panel fixation

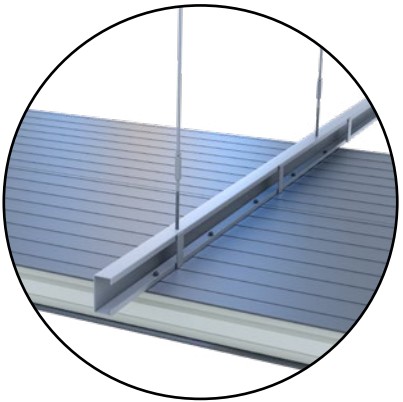

10-Ceiling panel installation(hidden type)

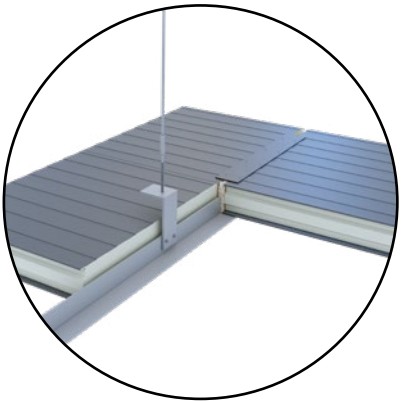

11-Ceiling panel installation(visible type)

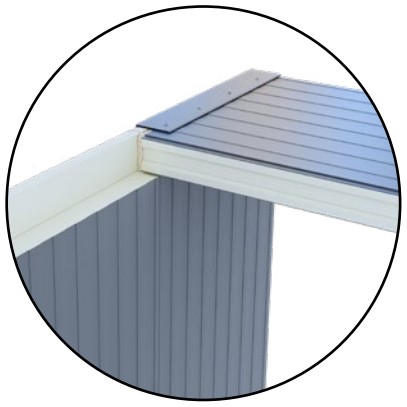

12-Connection joint between wall and ceiling

Vertical wall panel fixation

Ceiling panel

installation(hidden type)

Ceiling panel installation(visible type)

Connection joint between

wall and ceiling

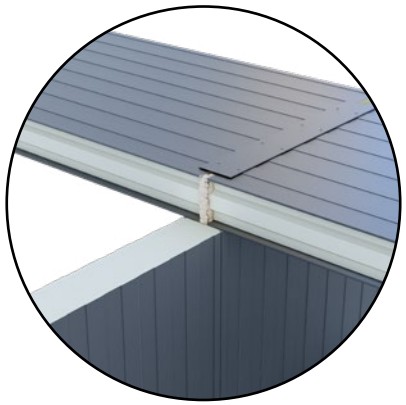

13-Connection joint between partition and ceiling

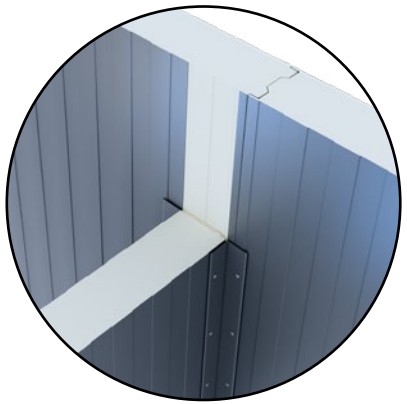

14-Connection joint between partition and wall

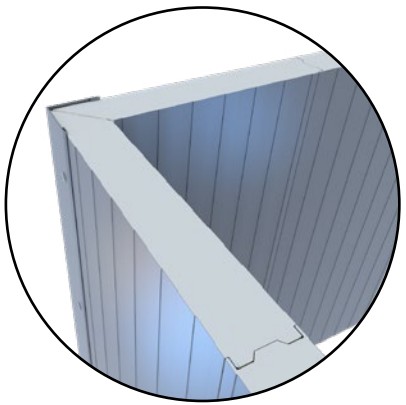

15-Connection joint between wall and wall


Connection joint between

partition and ceiling

Connection joint between

partition and wall

Connection joint

between wall and wall


Product specifications

Sandwich Panel

Width

500~1120mm

Thicknes

30~250mm

Length

≤22m

Surface Metal

Material

Color coated steel plate/ aluminum plated zinc plate /stainless steel plate

Thickness

0.4~0.8mm

Coating

PE、HDP、SMP、PVDF

Polyurethane core(PIR)

Fireproofing grade

Level B1

(Oxygen index≥30%)

Closed porosity

≥90%

Water absorption

≤3%

Thermal conductivity

0.018-0.021(w/m·K)

Heat resistance range

-60C~+100C

Attention: The weight of the panels are calculated according to the thickness of 50mm panel.


FAQ

1. How to control the quality of your product?

a) Quality of the design: think about possible problems in advance and provide a high quality design solution.

b) Quality of the raw material: choose the qualified raw material

c) Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.


2.How about your lead time?

It will take 3-7 days for budget and design according to the drawings after receiving the

deposit. 20-40 days if there are some special sizes.


3. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;


4.What can you buy from us?

sandwich panels,PUR sandwich panels,PIR Sandwich panel,cold storage sandwich panels,rock wool sandwich panels


5. How long is your warranty? What kind of after-sale service can you provide?

Our warranty is 1 years since the project done.

During the warranty time, if anything has problems, we will replace it.

If you can’t handle it, we will send engineer come to solve it without any charge.
