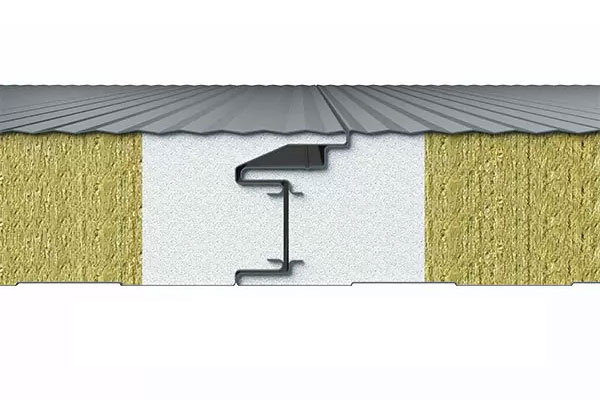

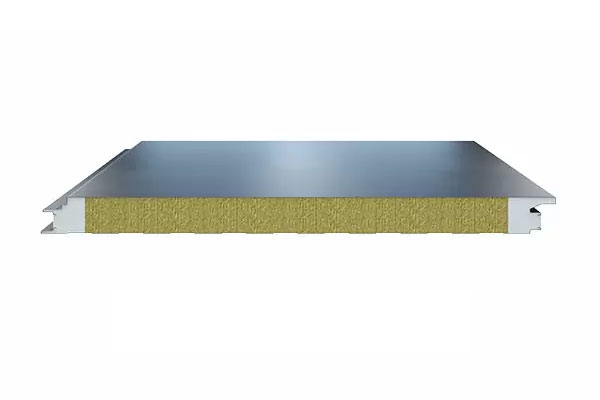

Polyurethane Edge Sealing Rock Wool Sandwich Panel
☑ Rock Wool Sandwich Panels

Product Details

Product Introduction

The thermal conductivity of rock wool is 0.043 (w/m·k), which is an excellent thermal insulation material. Rock wool sandwich panels are widely used in clean workshop, composite house, roof plus house, indoor compartment, car painting room and frozen fresh storage and other projects. As building exterior wall, they have excellent performance on heat insulation and fire protection. Color coated steel, aluminum or stainless steel can be selected according to environmental requirements.

The rock wool sandwich panels can reduce the noise significantly, especially suitable for places with high requirements for sound insulation. In addition, after the use of rock wool roofing board, the indoor sound caused by rain and hail on the impact surface of the building roof will also be weakened significantly .



Product specifications

Application

Warehouse, workshop, cold room, cool room, cold storage,  Green house

Core Material

Rock wool/PU+Rock wool/PU+Glass wool

Core Density

105kg/m³

Effective Width

800--1200mm

Thickness

50--150mm

Length

2.4m --11.9m (non-standard lengths are available and subject to transportation restrictions)

Surface Material

Color coated steel/ Stainless steel/ Magnesium Aluminum Zinc alloy coated steel

Surface Color

White, Blue, Red, RAL color

Surface Thickness

Exterior

Interior

0.4, 0.6, 0.8mm/26,24,22ga

0.4, 0.6, 0.8mm/26,24,22ga

Profile

Exterior



Interior

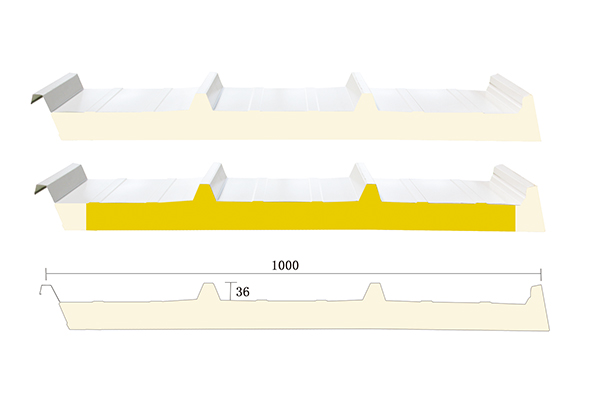

Mesa with Trapezoidal Ribs  (Roof panel)

Shadowline, Micro-Rib or Flat (Wall panel)

Mesa (Roof panel)

Shadowline (Wall panel)

Embossing

Exterior

Interior

Stucco or non-embossed

Stucco or non-embossed

Side steel tape seal

0.5mm--1mm Galvanized sheet/ No side seals

Fire-protection rating

Level A



FAQ

1. How to control the quality of your product?

a) Quality of the design: think about possible problems in advance and provide a high quality design solution.

b) Quality of the raw material: choose the qualified raw material

c) Quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.



2.How about your lead time?

It will take 3-7 days for budget and design according to the drawings after receiving the

deposit. 20-40 days if there are some special sizes.



3. How can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



4.What can you buy from us?

sandwich panels,PUR sandwich panels,PIR Sandwich panel,cold storage sandwich panels,rock wool sandwich panels



5. How long is your warranty? What kind of after-sale service can you provide?

Our warranty is 1 years since the project done.

During the warranty time, if anything has problems, we will replace it.

If you can’t handle it, we will send engineer come to solve it without any charge.
