Product Introduction

Production raw materials are made of Dacheng hot-dip galvanized Q 355N/mm2 high strength strip steel, excellent anti-corrosion performance, adequate stock, CNC drilling, Extremely high production efficiency and precision, can meet the simple support and continuous design needs, timely supply, safety and lightweight.

Available thickness 0.7mm-3.2mm.

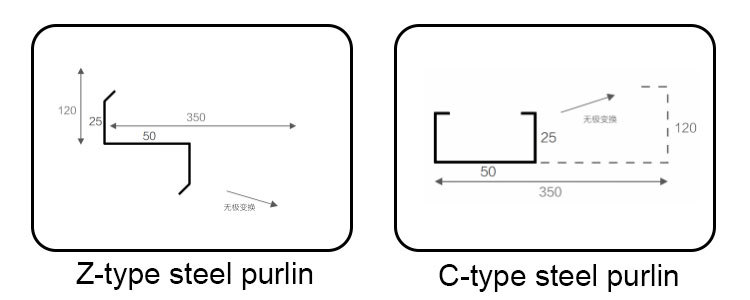

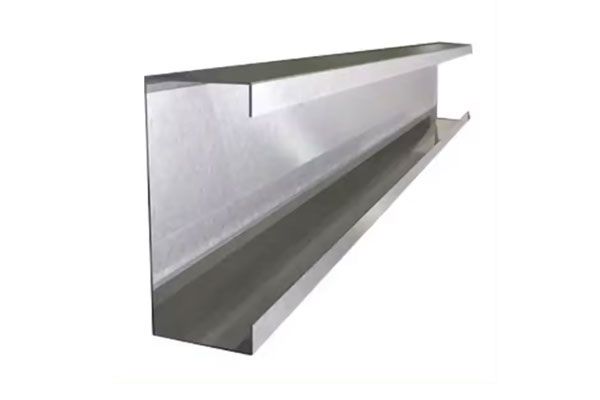

C Sections are mono-symmetric sections. Their freestanding, stable shape allows easy handling and storage and is adaptable to ‘I’ and ‘box’ configurations.

Z Sections are asymmetric sections. The uneven flange

widths allow the sections to be lapped to permit structural continuity, a factor that contributes significantly to building economies. Savings achieved by lapping Z sections, resulting from the increase in strength and rigidity, more than

compensate for the extra purlin material required in the lap itself.

Product specifications
